Answers to questions about the use of AXNEN HQ3：

1.Why does my HQ3 keep shaking or vibrating? And with the electric current sound?

--Before turning on the HQ3 Gimbal, the mobile phone must be placed in the middle (if turning on the HQ3 without the mobile phone or without phone in centering will cause abnormal vibration or shaking of the HQ3).

2. Why does my HQ3 work, but it won't charge?

--Please use the USB cable configured by us to charge the HQ3, or use the cable which USB-A cable at one end and the TYPE-C at the other end. However, cables with TYPE-C at both ends cannot be used. Cables with TYPE-C at both ends cannot be used.

3. Why does the joystick suddenly not work during the use of my HQ3?

--The Gimbal has a limit angle. When HQ3 is manipulated to move to the limit angle position, the head will automatically turn on the self-protection in order to protect the internal current (usually manifested as no matter how to manipulate the joystick, the head will not turn), first of all, this is the normal machine self-protection phenomenon. Usually occurs in the following situation: the gimbal tilted forward 30 degrees and the phone lens up or down to the angle of 30 degrees. When this happens, you can restore the mobile state by the following way: take HQ3 right, let HQ3 not in the tilt state, and then shake the phone slightly with your hand.

Suitable phone size and weight for HQ3:

it support smart phones with width 55-85mm.

Thickness less than 8.2mm.

The load should less than 260g.

Note:
HQ3 does not support APP. Only Bluetooth-compatible!

Specifications:
Name of product: AXNEN HQ3 Gimbal Stabilizer for Mobile Phone
Product Material: Environmental Protection ABS + Glass Fiber
Charging Method: 5V1A
Battery Capacity: 2200mAh
Product Load: 260g
Support Phone Width: 55-85mm
Endurance Time:Laboratory stationary placement test results are 9 hours
Product Weight:295g（battery included）
Name of Bluetooth Device:HQ3+ Last 4 serial number

HQ3 Gimbal Stabilizer

Three axis anti-vibration system perfect for shooting

Small size and big function

Combined with various modes handheld gimbal stabilizer , it has high-accuracy anti-vibration system and bluetooth-compatible remote-control function.
Freely switch from horizontal shooting to vertical shooting.
Self-lock structure can be folded easily and automatic balancing without parameter adjustment.
Large capacity 2200mah lithium battery can provide up to 8 hours endurance for stability function.

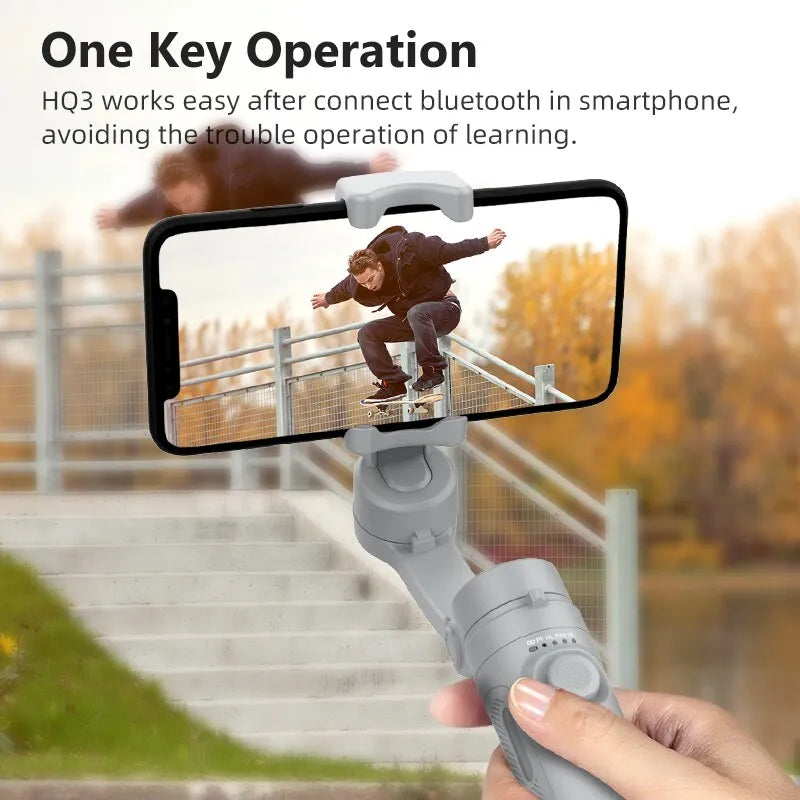

One Key Operation

HQ3 works easy after connect bluetooth-compatible in smartphone,avoiding the trouble operation of learning

Meet the need of shooting while walking,always keep the picture balanced and smooth,and easily shoot beautiful pictures.

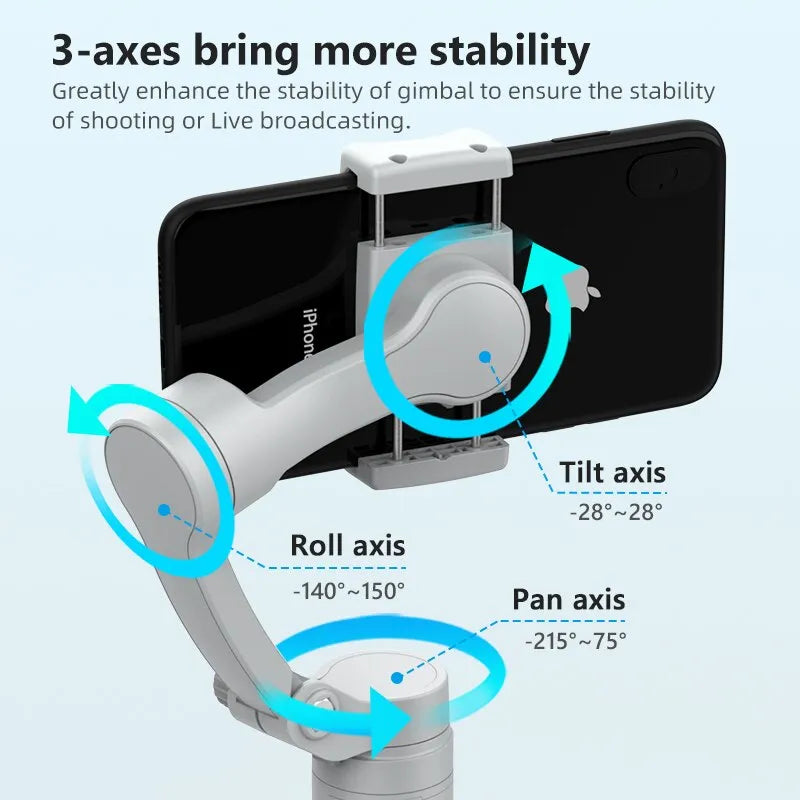

3-axis bring more stability

Greatly enhance the stability of gimbal to ensure the stability of shooting or Live broadcasting .

Freely switch from horizontal shooting to vertical shooting.Whether it is horizontal screen or vertical screen,easy shooting meets the shooting needs of various video platforms.

Comfortable & Foldable Easy to Carry

ABS + glass fiber material,comfortable non-slip handle design.take it with you wherever you go.

Product Weight: 295g ( battery included )

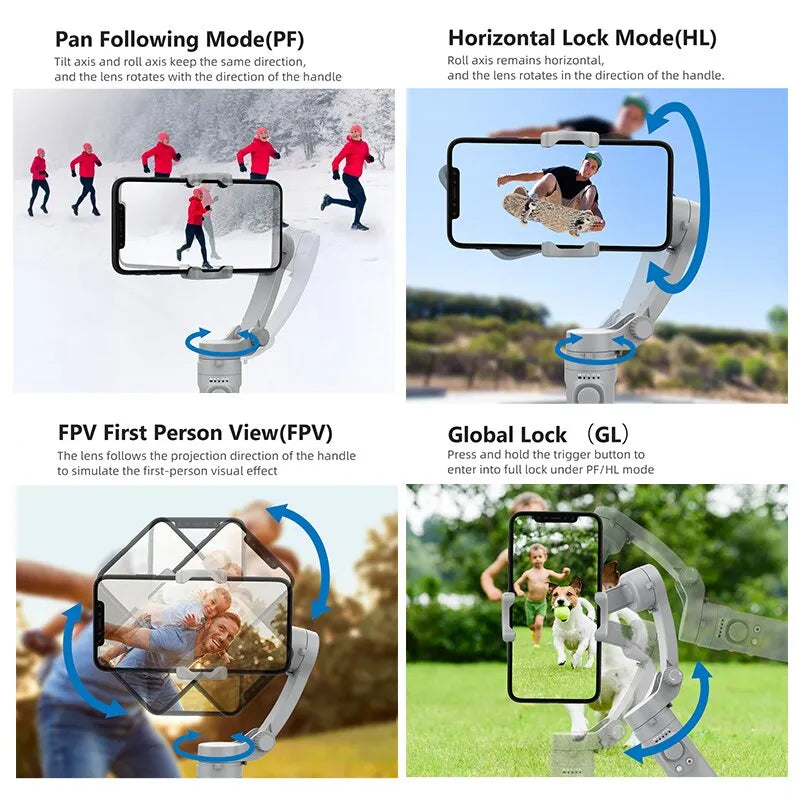

Pan Following Mode ( PF )

Tilt axis and roll axis keep the same direction,and the lens rotates with the direction of the handle.

Horizontal Lock Mode (HL)

Roll axis remains horizontal and the lens rotates in the direction of the handle.

FPV First Person View ( FPV )

The lens follows the projection direction of the handle to simulate the first-person visual effect.

Global Lock(GL)

Press and hold the trigger button to enter into full lock under PF / HL mode

Manual Lock

Hold the mobile phone clip by hand pull it to the specified angle in the tilt direction,and stay for half a second to lock the current angle.

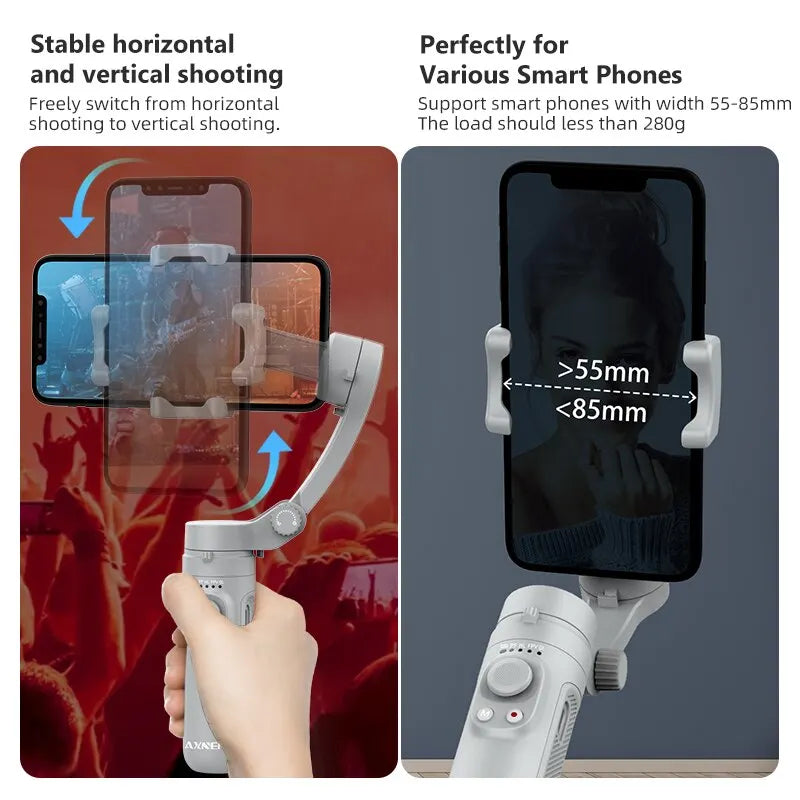

Perfectly for Various Smartphones

Support smart phones with width 55-85mm
The load should less than 280g.

Large battery capacity

HQ3 build-in 2200mah Li-battery,it runs up to 8 hours.
You can easily handle demands of continuous filming during a long journey.

Suitable for a variety of scenes,to be director of life to find Wonderful times.
